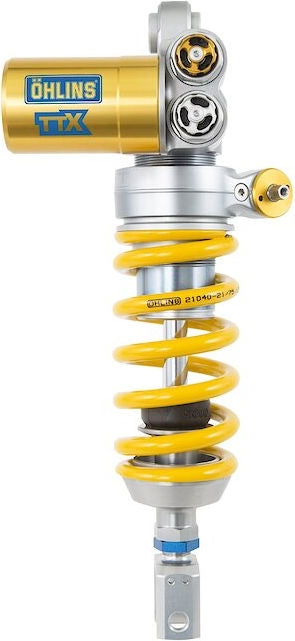

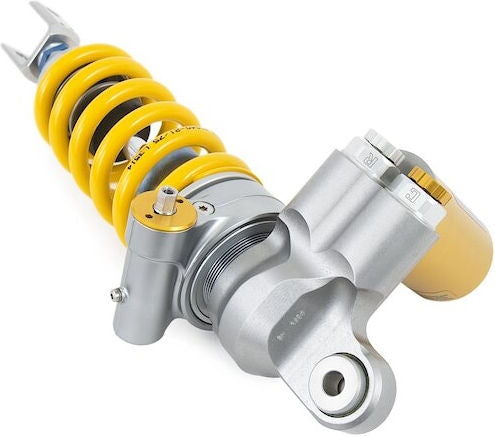

Ohlins / オーリンズ TTX GP ショックアブソーバー BM 570 | BM 570

Article Number : BM 570

Technical Data
Length : 369 +7/-5 mm
Stroke : 80 mm
Rate N/mm : 58 N/mm
Position : rear
Mounted spring : 01096-13
Spring series : 01096-xx
Packaging unit : pieces

Type Code : T36PR1C1LB
Twin tube
T
Twin tube
Piston diameter
36
Piston diameter: 36 mm
Öhlins Motorcycle type P
P
Monotube high pressure gas type of shock absorber with external “piggy back” reservoir.

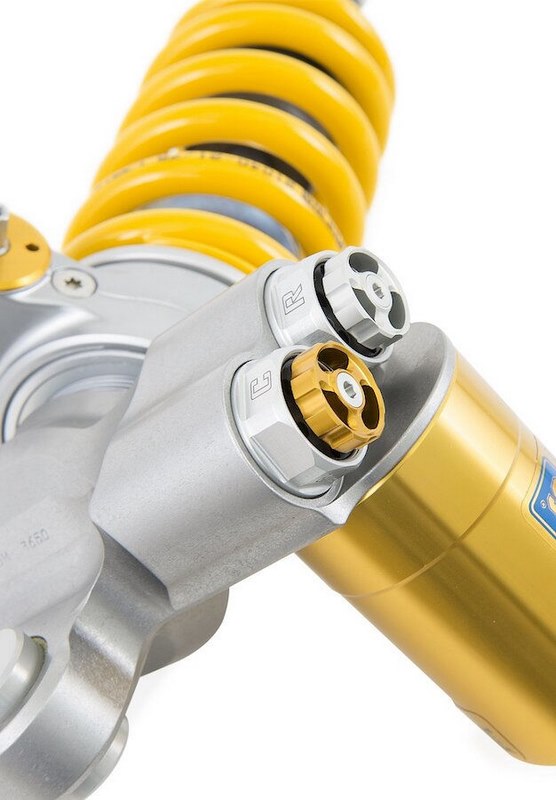

Öhlins Motorcycle TTX36 R1 rebound damping adjusterÖhlins Motorcycle TTX GP R1 rebound damping adjuster
R1
Adjustable rebound damping. Black adjuster on TTX36 shocks / silver adjuster on TTX GP shocks.
Öhlins Motorcycle TTX36 C1 compression damping adjusterÖhlins Motorcycle TTX GP C1 compression damping adjuster
C1
Adjustable compression damping. Gold adjuster on TTX36 / TTX GP shocks.
Öhlins Motorcycle L
L
Adjustable length.
Öhlins Motorcycle B
B
Integrated hydraulic spring preload adjuster. Adjuster wheel or hexagon on the adjuster.
