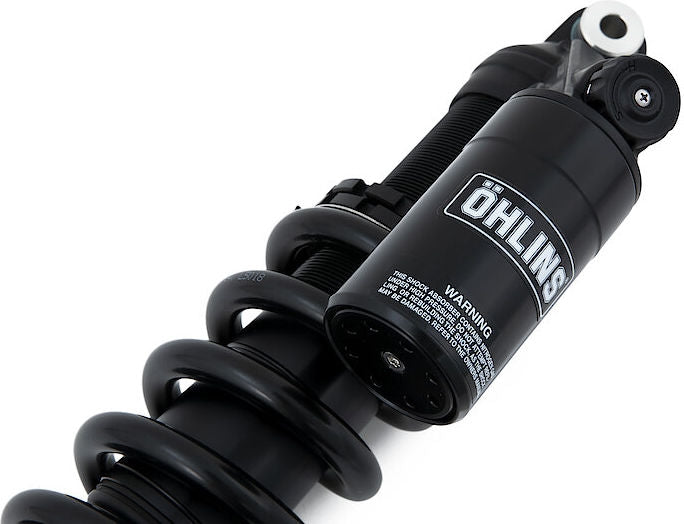

Ohlins / オーリンズ STX 46 Blackline（ブラックライン） ショックアブソーバー YA 580 | YA 580

Article Number : YA 580

Technical Data
Length : 326,5 mm
Stroke : 65,5 mm
Rate N/mm : 90 N/mm
Position : rear
Mounted spring : 21102-29
Packaging unit : pieces

Type Code : S46HR1C1S
Single tube
S
Single tube
Piston diameter
46
Piston diameter: 46 mm
Öhlins Motorcycle type H
H
Monotube high pressure gas type of shock absorber with hose mounted external reservoir.
Öhlins Motorcycle R1 rebound damping adjuster
R1
Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.
Öhlins Motorcycle S36C1 compression damping adjuster
C1
Adjustable compression damping. Adjuster wheel or slot on the reservoir.
Öhlins Motorcycle S
S
Hose mounted hydraulic spring preload adjuster.
