Ohlins / オーリンズ STX 46 Street （ストリート）ショックアブソーバー YA 583 | YA 583

Article Number : YA 583

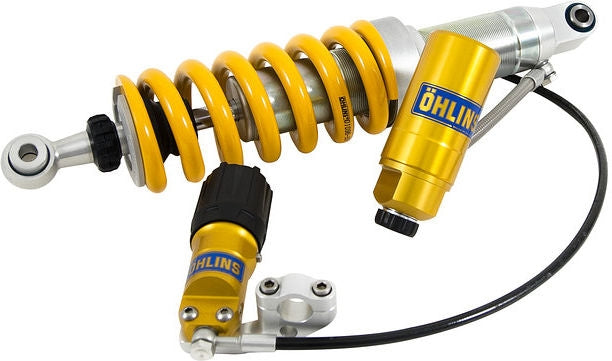

Öhlins well proven STX 46 Street series is the perfect upgrade for sportive street bikes. This high-pressure gas type shock absorber comes with an internal gas reservoir and with a 46 mm main piston. Depending on the application the shock absorber features a mechanic or a hydraulic preload adjustment as well as adjustable rebound damping.

Technical Data
Length : 327 mm
Stroke : 71,5 mm
Rate N/mm : 115N/mm N/mm
Position : rear
Mounted spring : 01096-41
Recommended oil : 01309-XX
Packaging unit : pieces

Type Code : S46HR1C1S
Single tube
S
Single tube
Piston diameter
46
Piston diameter: 46 mm
Öhlins Motorcycle type D
D
Monotube high pressure gas type of shock absorber with internal reservoir in the main body.
Öhlins Motorcycle type H
H
Monotube high pressure gas type of shock absorber with hose mounted external reservoir.
Öhlins Motorcycle R1 rebound damping adjuster
R1
Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.
Öhlins Motorcycle S36C1 compression damping adjuster
C1
Adjustable compression damping. Adjuster wheel or slot on the reservoir.
Öhlins Motorcycle S
S
Hose mounted hydraulic spring preload adjuster.
