説明

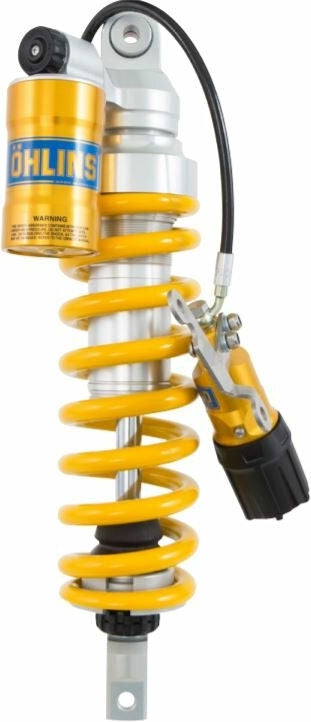

Article Number : YA 819
Technical Data
Length : 385mm mm
Stroke : 100mm mm
Rate N/mm : 75 N/mm
Position : rear
Mounted spring : 00580-21
Type Code : S46PR1C1S
Single tube
S
Single tube
Piston diameter
46
Piston diameter: 46 mm
Öhlins Motorcycle type P
P
Monotube high pressure gas type of shock absorber with external “piggy back” reservoir.
Öhlins Motorcycle R1 rebound damping adjuster
R1
Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.
Öhlins Motorcycle S36C1 compression damping adjuster
C1
Adjustable compression damping. Adjuster wheel or slot on the reservoir.
Öhlins Motorcycle S
S
Hose mounted hydraulic spring preload adjuster.
