Article Number : NSW.05.845.51000/B
EAN : 4052572251423

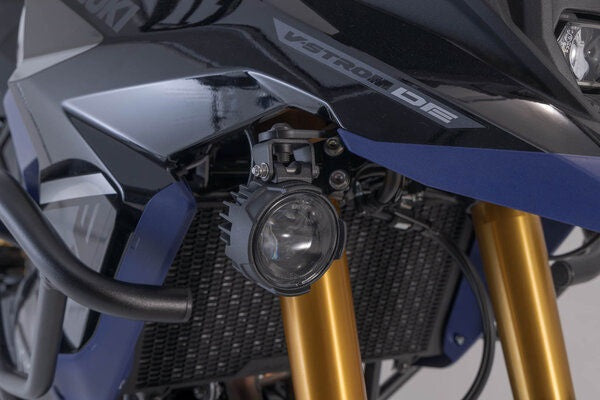

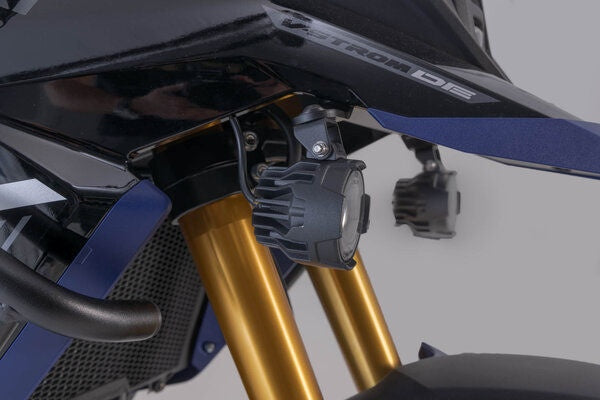

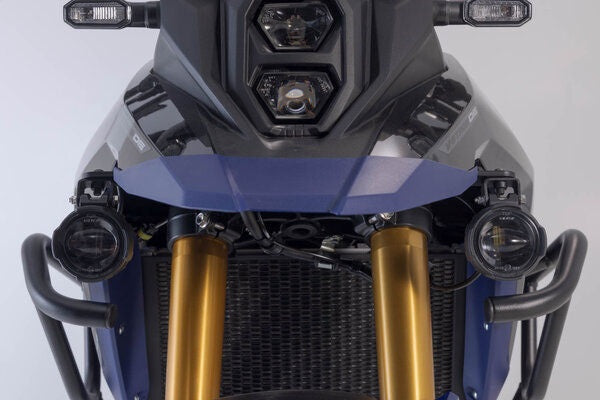

EVO Fog light kit
This kit contains all the parts required to mount EVO lights easily and safely on the Suzuki V-Strom 800DE.
The bike-specific headlight brackets are attached to the original attachment points and enable optimal positioning of the headlight. The particularly wide light scatter of the EVO fog lights ensures that you can "see and be seen" in fog or in poor weather. The EVO fog lights are water- and dustproof in accordance with safety class IP69. Powerful LEDs provide the best view, while wear-resistant housings ensure long life.
Light mount
Compatible with SW-MOTECH lights
Simple mounting on available attachment points
Bike-specific development ensures that lights fit perfectly
Corrosion protection thanks to the high-quality powder coating
Details
Material: Steel
Surface: powder coated
Color: black
Total Weight: appr. 0,7 kg / appr. 1.5 lb

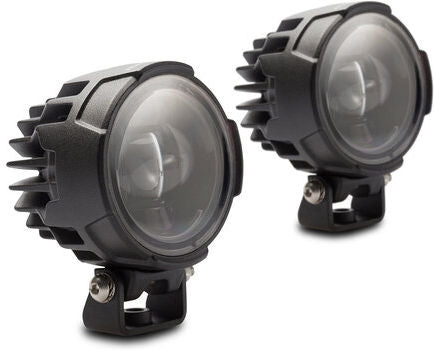

EVO Fog lights
Trouble- and maintenance-free operation due to almost wear-free LED, considerably reduced energy consumption
Compact size with a diameter of 7.1cm
Water- and dustproof (safety class: IP69)
Voltage: 12 V; cable harness for easy connection to the motorcycle battery is included, no change to motorcycle electric required
Splash-proof and illuminated handlebar switch for easy operation
Lights have an ECE test mark (ECE R19 F3)
Power: 12 W / luminous flux: 1,050 LM each light
Splash-proof and bright green handlebar switch for convenient operation
Mounting points on all four sides
Installation on headlight clamps for crash bar (Ø 22, 26, 27, 28 mm) or bike-specific brackets
Details
Material: Aluminum
Surface: powder coated
Color: black
Size: 7,1 x 7,1 cm / 2.8 x 2.8 in
Total Weight: appr. 1,4 kg / appr. 3.1 lb
Note
Note that due to the curvature of the reflector the "TOP" mark must always be at the top.
Please observe the legal regulations applicable in your country for the operation and installation of fog lights.
Required for mounting
Crash bar clamps or model-specific light mount available separately.
Included in delivery
2 x EVO Fog lights, Aluminum, black
2 x Light mount, Steel, black
1 x Cable harness with fuse
1 x Handlebar switch
Mounting instructions
Mounting material
Details
Total Weight: appr. 2,1 kg / appr. 4.6 lb
Note
Only mountable with SW-MOTECH logo up due to reflector curvature Hanging or upright mount possible depending on model (see mounting instructions).
Please observe the legal regulations applicable in your country for the operation and installation of fog lights.
