「日本語翻訳」

商品番号 : ADV.01.841.75000/S
EAN : 4052572217788

アドベンチャーセットラゲージ
アドベンチャーセットのラゲージは、ホンダNC 750 Xに合わせて設計されたPROサイドキャリアとSTREET-RACKがセットになっています。サイドキャリアとラックは、バイク専用の取り付け部に取り付け、シルバーのTRAX ADVアルミケースをしっかりホールドします。
このセットは、あらゆるツアーに対応するオールラウンドでケアフリーなパックです。防水・防塵のTRAX ADVプレミアムアルミケース、サイドケース2個、トップケース1個が、荷物をしっかり保護します。バイク専用に開発された取り外し可能なPROサイドキャリアとADVENTURE-RACKは、アルミケースに最適なフィット感と確実なグリップを保証します。
TRAX ADVの頑丈なアルミケースは、安定性、水や埃に対する耐久性、エレガントな光学系、考え抜かれた機能、豊富なアクセサリーで納得のいくものです。このアドベンチャーセットには、TRAX M/Lエクスパンションバッグが2つ含まれており、さらに多くの収納が可能です。サイドケースに固定して使用するため、水密性が高く、中身を素早く取り出すことができます。
プロサイドキャリア
最適化された形状と2.5mm厚のスチールにより、極めて高い耐久性を実現
完璧なフィット感、バイクに密着するように設計されています。
より頑丈になった新開発のクイックリリース・ファスナーで、完全に取り外しが可能
オプションで盗難防止装置も用意
常時装着の場合、クイックリリース・ファスナーを標準部品（M8）に交換することができます。
RotopaXシステムなどと互換性のある多数の機能的なボア
オリジナルのマウントポイントに簡単に取り付け可能
粉体塗装による強力な耐腐食性
TRAX、AERO、SysBag用アダプタープレート（SysBag 15、30、WP L）で確実にホールド。
Givi/Kappa、Krauser、Shadのケースを取り付けるためのアダプターキットも利用可能です。
詳細
材質スチール
表面処理：パウダーコーティング
カラー: ブラック
総重量： 約4.7 kg / 約10.3ポンド
備考
SW-MOTECHなどのアルミケース、AERO ABSサイドケース、アダプタープレート付きシスバッグ（シスバッグ15、30、WP L）には、アダプターキットが必要です。
PROサイドキャリア用アダプターキット
TRAXやNANUKのサイドケースをSW-MOTECH PROサイドキャリアに取り付けるためのアダプターキットです。
SW-MOTECH PROサイドキャリアの既存の穴に装着可能
左側用と右側用
詳細
総重量：約0.3 kg / 約0.7 lb
TRAX ADV L アルミニウムケース
バイクの左側用モデル
アルマイト仕上げにより酸化や磨耗から保護します。
アルミニウム製の丈夫で防水性の高いサイドケース
コーナリング時の接地面積を確保するための大きな面取りと、ガラス繊維強化プラスチック製コーナーキャップによるさらなる保護
ロボットガイドによる溶接とセルフピアシングリベットで、湿気の侵入を防止。
荷物を積んだ状態でも、クイックリリース・ファスナーで完全に取り外しが可能なフタ
4つの大型タイダウンが蓋のデザインに統合（例：テントやアクセサリーバッグ用）
エンボス加工、溶接されたエッジ、固定用レールにより、高い安定性を実現
ステンレススチール製のヒンジ、アルマイト処理されたアルミニウム製のハンドル
リッドリミッターにより、リッドに荷物を追加した際の安定性を確保
交換可能なカバーガスケット
気圧や温度が極端に変化した場合でも、簡単に蓋を開けることができます。
すべてのPROおよびEVOラゲッジキャリア（アダプターは別売）に素早く装着可能。
GiviやHepcoなど、他メーカーのキャリアに取り付けるためのアダプターキットもご用意しています。

---

「原文」

Article Number : ADV.01.841.75000/S
EAN : 4052572217788

Adventure set luggage
The Adventure set luggage includes the PRO side carriers and STREET-RACK designed to fit the Honda NC 750 X. The side carriers and rack are attached to the bike-specific attachment points and offer a secure hold for the silver TRAX ADV aluminum cases.
This set is the all-round, care-free pack for any tour. The water and dust-tight TRAX ADV premium aluminum case, two side cases and a top case offer your luggage the best protection. The bike-specific development of the detachable PRO side carrier and the ADVENTURE-RACK guarantee an optimal fit and secure grip for aluminium cases.
Our sturdy TRAX ADV aluminum cases convince with their stability, impermeability to water and dust, elegant optics, well-thought out features and a large selection of accessories. For even more storage, this adventure set contains two TRAX M/L expansion bags. These are fastened to the side cases, are water-tight and the contents can be especially quickly accessed.

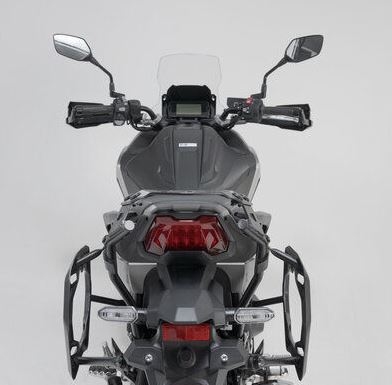

PRO Side carrier
Extremely durable due to its optimized shape and 2.5 mm thick steel
Perfect fit, designed to fit close to the bike
Fully removable with newly developed, even more robust quick-release fasteners
Optional anti-theft protection available
For permanent mounting, quick-release fasteners can be replaced with standard parts (M8)
Numerous functional bores, compatible with the RotopaX system among others
Simple mounting on original mounting points
Powerful corrosion protection thanks to powder coating
Secure hold for TRAX, AERO and SysBags with adapter plate (SysBag 15, 30, WP L)
Adapter kits for attaching cases from Givi/Kappa, Krauser and Shad are also available
Details
Material: Steel
Surface: powder coated
Color: black
Total Weight: appr. 4,7 kg / appr. 10.3 lb
Note
Adapter kits are required for aluminum cases from SW-MOTECH and other manufacturers and also for AERO ABS side cases and SysBags with adapter plates (SysBag 15, 30, WP L).

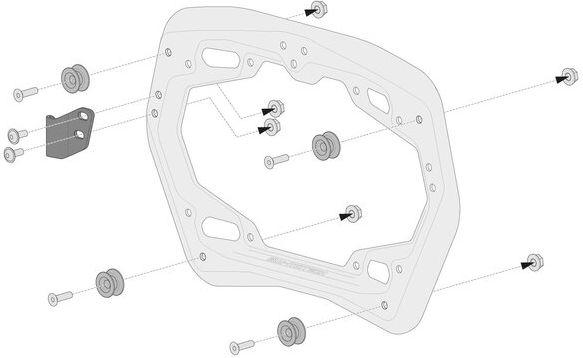

Adapter kit for PRO side carrier
Adapter kit for attaching a TRAX or NANUK side case to an SW-MOTECH PRO side carrier
Mounted on to the existing holes of the SW-MOTECH PRO side carrier
For left and right sides
Details
Total Weight: appr. 0,3 kg / appr. 0.7 lb
TRAX ADV L Aluminium case
Model for the left side of the motorcycle
Protection against oxidation and abrasion thanks to anodized finish
Sturdy and watertight side case made from aluminium
Large chamfer on sides for plenty of ground clearance for cornering, additional protection from glass fiber reinforced plastic corner caps
Robot-guided welding and self-piercing riveting prevent dampness from getting in
Even when loaded, completely removable lid with quick-release fastener
4 large tie-downs integrated into the lid design (e. g. for a tent or accessory bag)
High stability thanks to the embossed patterns, welded edges and pre-installed retaining rail
Hinges made from stainless steel, handles made from anodized aluminum
Lid limiters provide additional stability when using extra luggage on the lid
Exchangeable cover gasket
The membrane makes it easy to open the lid, even in case of extreme pressure and temperature fluctuations
Quick mounting on to all PRO and EVO luggage carriers (adapters sold separately)
Adapter kits also available for mounting on to girders from other manufacturers such as Givi and Hepco & Becker
A lock set with 6 identical locks is available as an option and is not included in delivery
Details
Material: Aluminum
Material strength: 0,15 cm / 0.06 in
Surface: anodized
Color: silver
Size: 49,0 x 28,0 x 37,0 cm / 19.3 x 11.0 x 14.6 in
Total Weight: appr. 5,4 kg / appr. 11.9 lb
Total Volume: 45,0 l
Note
Also available as a TRAX ADV aluminum case system with 2 side cases, bike-specific side carriers, adapters and lock set.
Required for mounting
Side carrier, adapter kit, TRAX lock set
TRAX ADV L Aluminium case
Model for the right side of the motorcycle
Protection against oxidation and abrasion thanks to anodized finish
Sturdy and watertight side case made from aluminium
Large chamfer on sides for plenty of ground clearance for cornering, additional protection from glass fiber reinforced plastic corner caps
Robot-guided welding and self-piercing riveting prevent dampness from getting in
Even when loaded, completely removable lid with quick-release fastener
4 large tie-downs integrated into the lid design (e. g. for a tent or accessory bag)
High stability thanks to the embossed patterns, welded edges and pre-installed retaining rail
Hinges made from stainless steel, handles made from anodized aluminum
Lid limiters provide additional stability when using extra luggage on the lid
Exchangeable cover gasket
The membrane makes it easy to open the lid, even in case of extreme pressure and temperature fluctuations
Quick mounting on to all PRO and EVO luggage carriers (adapters sold separately)
Adapter kits also available for mounting on to girders from other manufacturers such as Givi and Hepco & Becker
A lock set with 6 identical locks is available as an option and is not included in delivery
Details
Material: Aluminum
Material strength: 0,15 cm / 0.06 in
Surface: anodized
Color: silver
Size: 49,0 x 28,0 x 37,0 cm / 19.3 x 11.0 x 14.6 in
Total Weight: appr. 5,4 kg / appr. 11.9 lb
Total Volume: 45,0 l
Note
Also available as a TRAX ADV aluminum case system with 2 side cases, bike-specific side carriers, adapters and lock set.
Also available as a TRAX ADV aluminum case system with 2 side cases, bike-specific side carriers, adapters and lock set.
Required for mounting
Side carrier, adapter kit, TRAX lock set
TRAX lock set with PRO anti-theft protection
9 matching locks
With anti-theft protection for PRO side carrier
Compatible with side cases and top cases from the TRAX ADV and TRAX ION series
Details
Total Weight: appr. 0,5 kg / appr. 1.0 lb
Multi-tool key chain attachment
Multitool as practical key chain
Quick-release fastener opener for EVO and PRO side carriers
Hex key (14 mm) - ideal for many motorcycle mirrors
Hex keys in four additional sizes (8, 10, 12, 13 mm)
Bottle opener
Key chain eyelet
With laser-etched SW-MOTECH logo
Details
Material: Stainless steel
Surface: brushed
Color: silver
Total Weight: appr. 0,0 kg / appr. 0.1 lb

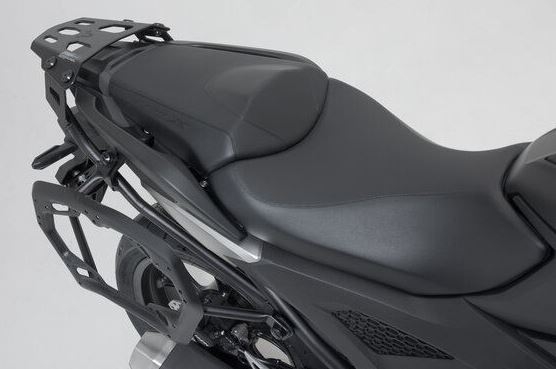

STREET-RACK
Perfect fit due to bike-specific attachments and high-precision CNC production processes
Compact shape complements the lines of sporty motorcycles and small street bikes
Simple assembly at the original mounting points
Effective corrosion protection from black powder coating
Made of lightweight yet robust, 5 mm thick aluminum alloy
The adapter plate (sold separately) can be securely locked to the rack without the use of tools
The adapter plate latch buckle is equipped with a safety mechanism that guarantees TRAX top cases, Sysbag 15/30 with adapter plate and PRO or EVO tank bags are securely in place
Adapter kits for attaching cases from other manufacturers (Givi Monokey and Monolock, Krauser, Shad I and II) also available
An extension that considerably increases the contact surface is available for strapping on large tail bags to the STREET-RACK
Details
Material: Aluminum
Surface: powder coated
Color: black
Total Weight: appr. 3,3 kg / appr. 7.3 lb
Adapter plate for STREET-RACK
The adapter kit included in delivery is compatible with TRAX ADV, TRAX ION and TRAX EVO top cases by SW-MOTECH
The adapter plate can be securely locked to the STREET-RACK without the use of tools
Adapter kits for other products can be purchased separately and allow you to modify the adapter plate
The rotating cam latch on the adapter plate features a safety mechanism that guarantees a secure connection for your luggage
Large surface area and hole pattern allow easy attachment of soft luggage
Made from rugged, glass fiber reinforced synthetic material
Details
Material: Fiberglass reinforced plastic
Color: black / silver
Size: 29,0 x 25,2 cm / 11.4 x 9.9 in
Total Weight: appr. 0,6 kg / appr. 1.4 lb
Note
The adapter plate for STREET-RACK is available with various adapter kits. We offer solutions for top cases by SW-MOTECH, Givi/Kappa, Krauser, Shad and Hepco & Becker, as well as for SysBags with adapter plate and EVO tank bags.
The adapter kits can be bought together with an adapter plate or separately. The adapter kits can be used for ADVENTURE-RACK to modify the adapter plate if needed and attach a top case from another manufacturer. The adapter kit for mounting an EVO tank bag is also available separately.
TRAX ADV Top case
Protection against oxidation and abrasion thanks to anodized finish
Premium top case made from 1.5 mm-thick aluminum
Hinged lid with lid limiter, stainless steel latch, sturdy carrying handles and integrated mounting points
100% water- and dustproof due to robotic welding and punch rivet technology
Theft protection: Case lid and case can be locked when on the carrier
High stability thanks to the visually appealing and functional embossed sheet metal
Additional protection from corners made of glassfiber-reinforced polyamide
Easy to clean surface
A lock set with 2 identical locks is available as an option and included in delivery when purchasing a TRAX ADV top case system
Details
Material: Aluminum
Material strength: 0,15 cm / 0.06 in
Surface: anodized
Color: silver
Size: 41,0 x 34,0 x 33,0 cm / 16.1 x 13.4 x 13.0 in
Total Weight: appr. 4,8 kg / appr. 10.6 lb
Total Volume: 38,0 l
Note
Also available as a TRAX ADV top case system with ADVENTURE-RACK, adapters and lock set.
TRAX WP M/L expansion bag
Waterproof accessory bag that can be lashed onto side cases
For side cases from SW-MOTECH and other brands (such as BMW, for ex.)
15 litres of additional storage, padded
Circumferential, waterproof zipper enables quick access to the entire contents
Overlapping lid is secured using plastic clips
Divider for custom organisation of the interior
Made of robust, easy to clean material
Sleek design with reflective details
Sturdy carrying handle
8 D-rings offer flexible lashing options (spacing of the inner D-rings: approx. 24 cm, spacing of the outer D-rings: approx. 32 cm)
Details
Material: 500D Polyester
Color: black
Size: 45,0 x 15,0 x 22,0 cm / 17.7 x 5.9 x 8.7 in
Total Weight: appr. 1,3 kg / appr. 2.9 lb
Total Volume: 15,0 l
Note
The TRAX WP M/L expansion bag fits perfectly with the TRAX ADV and TRAX ION side cases from SW-MOTECH.
Included in delivery
1 x TRAX ADV L Aluminium case, 45,00 l, silver, right
1 x TRAX ADV L Aluminium case, 45,00 l, silver, left
1 x TRAX ADV Top case, 38,00 l, silver
2 x PRO Side carrier
2 x Adapter kit for PRO side carrier
2 x Anti-theft protection for PRO side carriers
1 x STREET-RACK
1 x Adapter plate for STREET-RACK
3 x TRAX lock set
2 x TRAX WP M/L expansion bag
6 x lid limiter
3 x Storage bags
1 x Multi-tool key chain attachment
Mounting instructions
Mounting material
Details
Color: silver
Total Weight: appr. 34,2 kg / appr. 75.4 lb
Total Volume: 158,0 l
