記事のコード: ADV.01.942.75001/S
EAN: 4052572208083

Adventure-Set Luggage.シルバー。Honda CRF1100L Adv.Sports (19-).
Adventure set luggage
Adventure set Luggageには、Honda Africa Twin CRF1100L Adventure Sports用のPROサイドキャリアと、それにマッチしたADVENTURE-RACKが含まれています。サイドキャリアとラックは、バイク専用のアタッチメントポイントに固定され、TRAX ADVアルミケースを頑丈に支えます。PROサイドキャリアは、アクラポビッチ製スリップオン・エキゾーストシステムと一緒に取り付けることができます。
このセットは、あらゆるツアーに対応するオールラウンドでケアフリーなパックです。防水・防塵のTRAX ADVプレミアムアルミケース、2つのサイドケース、トップケースがあなたの荷物を最大限に保護します。バイクに合わせて開発された着脱式のPROサイドキャリアとADVENTURE-RACKは、アルミケースに最適なフィット感と確実なグリップを保証します。頑丈なTRAX ADVアルミニウムケースは、その安定性、水やほこりに対する不浸透性、エレガントな光学系、考え抜かれた機能、豊富なアクセサリーで納得のいくものです。このアドベンチャーセットには、TRAX M/L拡張バッグが2つ含まれており、さらに多くの収納が可能です。
PRO サイドキャリア
最適化された形状と2.5mm厚のスチールにより、非常に高い耐久性を実現。5 mm厚のスチール製
パーフェクトフィット、自転車に密着するように設計されています
新しく開発され、さらに頑丈になったクイックリリースファスナーで完全に取り外すことができます
オプションで盗難防止対策も可能です
恒久的な取り付けのために、クイックリリースファスナーを標準部品（M8）に交換することができます
数多くの機能的なボアを備えています。特にRotopaXシステムとの互換性あり
オリジナルのマウントポイントへの簡単な取り付け
粉体塗装による強力な防錆効果
TRAX、AERO、NANUKのサイドケースとSysBag 15、SysBag 30のアダプタープレートによる確実な固定
Givi/Kappa、Krauser、Shadのケースを取り付けるためのアダプターキットもあります
詳細
材質。Steel
Surface: powder coated
Color: black
Weight: 5,7 kg / 12.6 lb
Width built on motorcycle:PROサイドキャリア用アダプターキット
PROサイドキャリア用アダプターキット
TRAXまたはNANUKサイドケースをSW-MOTECH PROサイドキャリアに取り付けるためのアダプターキット
SW-MOTECH PROサイドキャリアの既存の穴に取り付ける
左右用
詳細
重量: 0,4 kg / 0.8 lb
TRAX ADV L Aluminium case
モーターサイクルの左側用モデル
アルマイト仕上げによる酸化や摩耗からの保護
アルミニウム製の頑丈で防水性の高いサイドケース
側面の大きな面取りにより、コーナリング時に十分なグランドクリアランスを確保。ガラス繊維強化プラスチック製のコーナーキャップによる追加の保護
ロボットガイド溶接とセルフピアッシングリベットにより、湿気の侵入を防止
荷物を積んでいても、クイックリリースファスナー付きの完全に取り外し可能な蓋
蓋のデザインに組み込まれた4つの大きなタイダウン（例：。g.
エンボス加工されたパターン、溶接されたエッジ、事前に取り付けられた固定用レールによる高い安定性
ヒンジはステンレススチール製、ハンドルはアルマイト製
リッドリミッターは、蓋の上に余分な荷物を使用する際にさらなる安定性を提供します
交換可能なカバーガスケット
メンブレンにより、蓋を簡単に開けることができます。
すべてのPROおよびEVOラゲッジキャリアに素早く取り付け可能（アダプターは別売り）
Givi、Hepco、Beckerなど他メーカーのガーダーに取り付けるためのアダプターキットも用意されています
A lock set w

「原文」
Article Code: ADV.01.942.75001/S
EAN: 4052572208083

Adventure-Set Luggage. Silver. Honda CRF1100L Adv. Sports (19-).
Adventure set luggage
The Adventure set Luggage contains the PRO side carrier for the Honda Africa Twin CRF1100L Adventure Sports and the matching ADVENTURE-RACK. The side carrier and rack are fastened to the bike-specific attachment points and offer sturdy support for the TRAX ADV aluminium cases. The PRO side carrier can be mounted together with an Akrapovic slip-on exhaust system.
This set is the all-round, care-free pack for any tour. The water and dust-tight TRAX ADV premium aluminum case, two side cases and a top case offer your luggage the best protection. The bike-specific development of the detachable PRO side carrier and the ADVENTURE-RACK guarantee an optimal fit and secure grip for aluminium cases. Our sturdy TRAX ADV aluminum cases convince with their stability, impermeability to water and dust, elegant optics, well-thought out features and a large selection of accessories. For even more storage, this adventure set contains two TRAX M/L expansion bags. These are fastened to the side cases, are water-tight and the contents can be especially quickly accessed.
PRO Side carrier
Extremely durable due to its optimized shape and 2.5 mm thick steel
Perfect fit, designed to fit close to the bike
Fully removable with newly developed, even more robust quick-release fasteners
Optional anti-theft protection available
For permanent mounting, quick-release fasteners can be replaced with standard parts (M8)
Numerous functional bores, compatible with the RotopaX system among others
Simple mounting on original mounting points
Powerful corrosion protection thanks to powder coating
Secure hold for TRAX, AERO and NANUK side cases and SysBag 15 and SysBag 30 with adapter plate
Adapter kits for attaching cases from Givi/Kappa, Krauser and Shad are also available
Details
Material: Steel
Surface: powder coated
Color: black
Weight: 5,7 kg / 12.6 lb
Width built onto motorcycle: 52,0 cm / 20.5 in
Adapter kit for PRO side carrier
Adapter kit for attaching a TRAX or NANUK side case to an SW-MOTECH PRO side carrier
Mounted on to the existing holes of the SW-MOTECH PRO side carrier
For left and right sides
Details
Weight: 0,4 kg / 0.8 lb

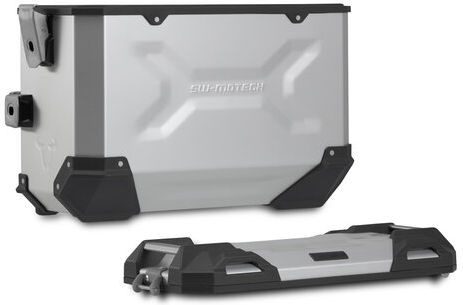

TRAX ADV L Aluminium case
Model for the left side of the motorcycle
Protection against oxidation and abrasion thanks to anodized finish
Sturdy and watertight side case made from aluminium
Large chamfer on sides for plenty of ground clearance for cornering, additional protection from glass fiber reinforced plastic corner caps
Robot-guided welding and self-piercing riveting prevent dampness from getting in
Even when loaded, completely removable lid with quick-release fastener
4 large tie-downs integrated into the lid design (e. g. for a tent or accessory bag)
High stability thanks to the embossed patterns, welded edges and pre-installed retaining rail
Hinges made from stainless steel, handles made from anodized aluminum
Lid limiters provide additional stability when using extra luggage on the lid
Exchangeable cover gasket
The membrane makes it easy to open the lid, even in case of extreme pressure and temperature fluctuations
Quick mounting on to all PRO and EVO luggage carriers (adapters sold separately)
Adapter kits also available for mounting on to girders from other manufacturers such as Givi and Hepco & Becker
A lock set with 6 identical locks is available as an option and is not included in delivery
Details
Material: Aluminum
Material strength: 0,15 cm / 0.06 in
Surface: anodized
Color: silver
Size: 49,0 x 28,0 x 37,0 cm / 19.3 x 11.0 x 14.6 in
Weight: 7,4 kg / 16.2 lb
Total Volume: 45,0 l
TRAX ADV M Aluminium case
Model for the right side of the motorcycle
Protection against oxidation and abrasion thanks to anodized finish
Sturdy and watertight side case made from aluminium
Large chamfer on sides for plenty of ground clearance for cornering, additional protection from glass fiber reinforced plastic corner caps
Robot-guided welding and self-piercing riveting prevent dampness from getting in
Even when loaded, completely removable lid with quick-release fastener
4 large tie-downs integrated into the lid design (e. g. for a tent or accessory bag)
High stability thanks to the embossed patterns, welded edges and pre-installed retaining rail
Hinges made from stainless steel, handles made from anodized aluminum
Lid limiters provide additional stability when using extra luggage on the lid
Exchangeable cover gasket
The membrane makes it easy to open the lid, even in case of extreme pressure and temperature fluctuations
Quick mounting on to all PRO and EVO luggage carriers (adapters sold separately)
Adapter kits also available for mounting on to girders from other manufacturers such as Givi and Hepco & Becker
A lock set with 6 identical locks is available as an option and is not included in delivery
Details
Material: Aluminum
Surface: anodized
Color: silver
Size: 49,0 x 23,0 x 37,0 cm / 19.3 x 9.1 x 14.6 in
Weight: 6,8 kg / 15.0 lb
Total Volume: 37,0 l
TRAX lock set
Matching locks
Compatible with side cases and top cases from the TRAX ION and TRAX ADV series
Details
Weight: 0,3 kg / 0.7 lb
Anti-theft protection for PRO side carriers
Anti-theft protection for PRO side carrier
With the anti-theft protection, any two quick release fasteners can be replaced
Set for right and left PRO side carrier, consisting of 2 matching locks and 2 identical keys
Details
Weight: 0,2 kg / 0.4 lb
Multi-tool key chain attachment
Multitool as practical key chain
Quick-release fastener opener for EVO and PRO side carriers
Hex key (14 mm) - ideal for many motorcycle mirrors
Hex keys in four additional sizes (8, 10, 12, 13 mm)
Bottle opener
Key chain eyelet
With laser-etched SW-MOTECH logo
Details
Material: Stainless steel
Surface: brushed
Color: silver
Weight: 0,0 kg / 0.1 lb

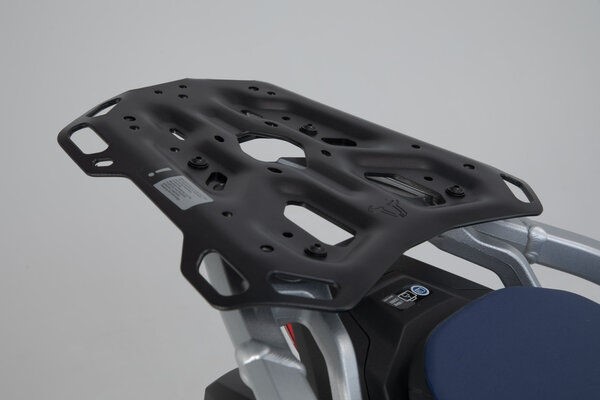

ADVENTURE-RACK Rack
Extremely robust rack for long tours and off-road rides
Exclusive manufacturing processes and its optimized shape lend an extra dose of stability to the ADVENTURE-RACK
Its extreme durability during vibrations, impacts and high weight was tested in the lab and off-road under harshest conditions
Multiple functional bores: for TRAX top cases. SysBag15/30 with adapter plate are available separately with the appropriate adapter kit
Adapter kits for attaching top cases by other manufacturers (Givi Monokey and Monolock, Krauser, Shad I und II) also available
Easy rigging of luggage on numerous, large lashing eyes, threading of 25 mm fasteners possible
Especially large contact surface (Width: 32.9 cm at the front, 22.5 cm at the back, Length: 30.3 cm)
Easy installation on original attachment points with bike-specific attachment elements
Effective corrosion protection from black powder coating
Made of light but sturdy 4mm-thick aluminum alloy
Details
Material: Aluminum
Material strength: 0,40 cm / 0.16 in
Surface: powder coated
Color: black
Weight: 1,5 kg / 3.3 lb
Adapter kit for ADVENTURE-RACK
Adapter kit for attaching a TRAX top case onto an ADVENTURE-RACK
Compatible with TRAX ADV, TRAX ION and TRAX EVO top cases by SW-MOTECH
Easy mounting: the adapter kit is screwed onto the rack
Details
Material: Polyamide / Stainless steel
Color: black / silver
Weight: 0,2 kg / 0.4 lb
TRAX ADV Top case
Protection against oxidation and abrasion thanks to anodized finish
Premium top case made from 1.5 mm-thick aluminum
Hinged lid with lid limiter, stainless steel latch, sturdy carrying handles and integrated mounting points
100% water- and dustproof due to robotic welding and punch rivet technology
Theft protection: Case lid and case can be locked when on the carrier
High stability thanks to the visually appealing and functional embossed sheet metal
Additional protection from corners made of glassfiber-reinforced polyamide
Easy to clean surface
A lock set with 2 identical locks is available as an option and is not included in delivery
Details
Material: Aluminum
Material strength: 0,15 cm / 0.06 in
Surface: anodized
Color: silver
Size: 41,0 x 34,0 x 33,0 cm / 16.1 x 13.4 x 13.0 in
Weight: 6,1 kg / 13.3 lb
Total Volume: 38,0 l
TRAX M/L expansion bag
Waterproof accessory bag that can be lashed onto side cases
For side cases from SW-MOTECH and other brands (such as BMW, for ex.)
15 litres of additional storage, padded
Circumferential, waterproof zipper enables quick access to the entire contents
Overlapping lid is secured using plastic clips
Divider for custom organisation of the interior
Made of robust, easy to clean material
Sleek design with reflective details
Sturdy carrying handle
8 D-rings offer flexible lashing options (spacing of the inner D-rings: approx. 24 cm, spacing of the outer D-rings: approx. 32 cm)
Details
Material: 500D Polyester
Color: black
Size: 45,0 x 15,0 x 22,0 cm / 17.7 x 5.9 x 8.7 in
Weight: 1,5 kg / 3.2 lb
Total Volume: 15,0 l
Included in delivery
1 x TRAX ADV M Aluminium case, 37,00 l, silver, right
1 x TRAX ADV L Aluminium case, 45,00 l, silver, left
1 x TRAX ADV Top case, 38,00 l, silver
2 x PRO Side carrier
2 x Adapter kit for PRO side carrier
2 x Anti-theft protection for PRO side carriers
1 x ADVENTURE-RACK Rack
1 x Adapter kit for ADVENTURE-RACK
3 x TRAX lock set
2 x TRAX M/L expansion bag
6 x lid limiter
3 x Storage bags
1 x Multi-tool key chain attachment
Mounting instructions
Mounting material
Details
Weight: 31,4 kg / 69.1 lb
Total Volume: 150,0 l
