Article Number : FBL.06.851.20000
EAN : 4052572268490

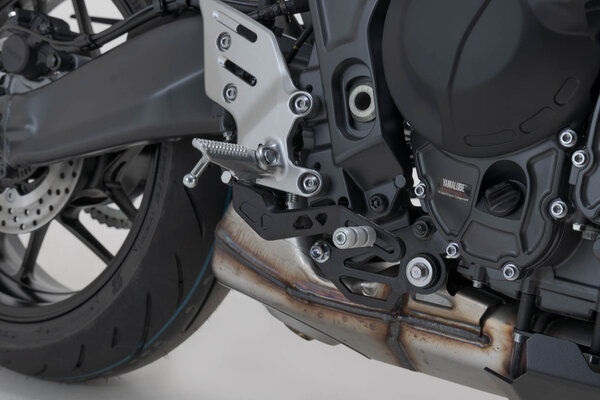

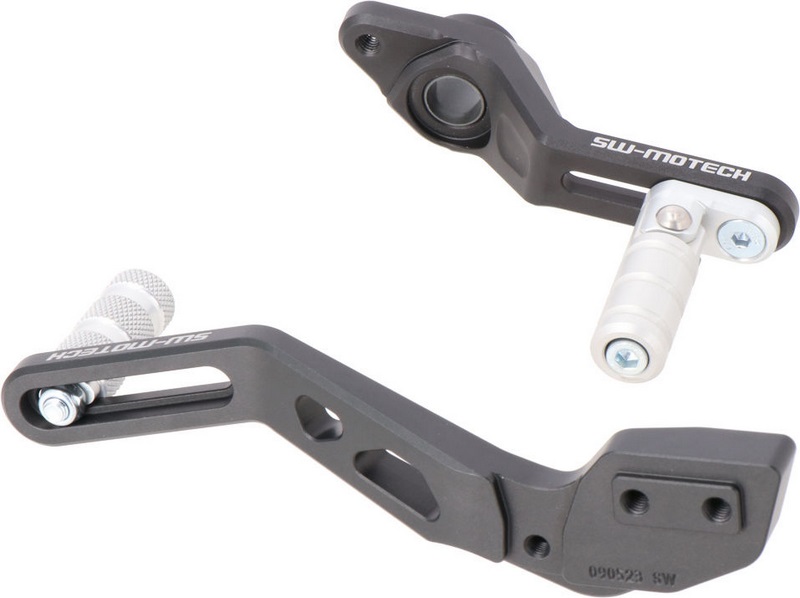

Gear lever and foot brake lever set

This ergonomic lever set made of high-quality aluminium was developed specifically for the Yamaha MT 09 and features an adjustable gear lever and a brake pedal.

Both foot levers are anodized with HART-COAT® to protect against scratching and are tested for precision fit and functionality. This shift and brake set not only looks great on your bike, but they also allow you to fully customize your exact foot position for optimum control while shifting, braking, sitting or standing—no matter what kind of boot you're wearing.
Brake pedal
Bike-specific aluminum lever arm
Robust construction, perfect fit: CNC-milled, HART-COAT® coated aluminum
Better ergonomics and safe operation of the brake pedal
High-quality milled tread for maximum stability
Knurling increases grip and prevents slipping
Platform features various adjustable positions
Tread STREET included by default in delivery
Adventure tread for off-road touring (sold separately)
TÜV certificate and national type approval available

Details

Material: Aluminum
Color: black
Total Weight: appr. 0,4 kg / appr. 0.8 lb

Note

Professional installation highly recommended

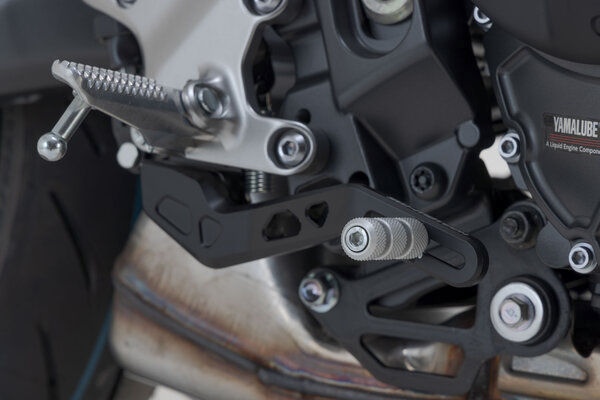

Gear lever
Two-part gear lever with continuously adjustable unit
Distance between tread and switching shaft on original gear lever: 130 mm
Adjustable range of distance between tread and switching shaft on the SW-MOTECH gear lever: xx - xx mm
The tread can also be mounted at a 180° angle.
Better ergonomics and safe operation of the gear lever
A spring mechanism enables it to be folded down and protects it from breaking in case of a crash
Robust and elegant: CNC-milled, HART-COAT® coated aluminum
Mounting of an extension for gear lever for expanding the tread surface possible
General Operating License not required for German traffic

Details

Material: Aluminum / Aluminum
Surface: anodized / anodized
Color: black / silver
Total Weight: appr. 0,1 kg / appr. 0.3 lb

Warning

In the event of an accident, the folding mechanism of the gear lever is only guaranteed when the gear lever is set in the standard position facing forward.
Included in delivery
1 x Brake pedal
1 x Gear lever
Mounting instructions
Mounting material
Details
Color: black
Total Weight: appr. 0,7 kg / appr. 1.5 lb
