Article Number : KFT.11.953.70002/B
EAN : 4052572266984

TRAX ADV Aluminum case system

TEST WINNER in the magazine MOTORRAD issue 05/2020. Test result: VERY GOOD

Durable TRAX ADV aluminum cases feel at home on any stretch of road: embossed patterns add stability to the 1.5 millimeter-thick, welded aluminum wall material. A completely removable lid with carrying handles made of anodized aluminum and quick release fasteners makes loading and unloading of motorcycle luggage easier; the beveled side edge provides high ground clearance when cornering. With this complete solution, you have all the components you need to travel with TRAX: two waterproof TRAX ADV side cases, two detachable SW-MOTECH side carriers, adapter kit, lock set, lid limiter and anti-theft protection at an attractive price.

The bike-specific carrier and the size of the cases are perfectly matched to the rear shape and exhaust system of the motorcycle. A motorcycle case without compromise: the development of the TRAX ADV focused on stability and impermeability against dust and water as well as simple handling. Whether on an off-road adventure, road trip or short haul, the premium aluminum case with a wall thickness of 1.5 millimeters will come out on top in any challenge.

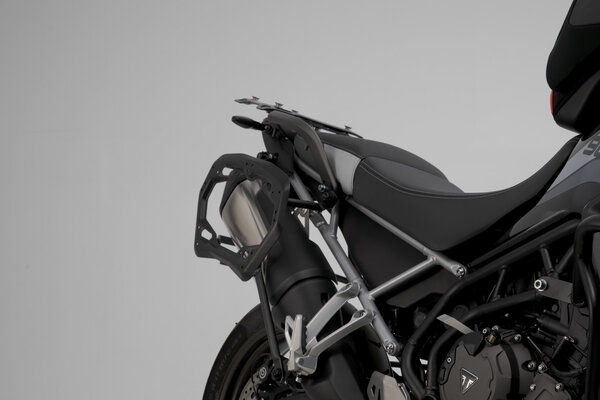

PRO Side carrier
Extremely durable due to its optimized shape and 2.5 mm thick steel
Perfect fit, designed to fit close to the bike
Fully removable with newly developed, even more robust quick-release fasteners
Optional anti-theft protection available
For permanent mounting, quick-release fasteners can be replaced with standard parts (M8)
Numerous functional bores, compatible with the RotopaX system among others
Simple mounting on original mounting points
Powerful corrosion protection thanks to powder coating
Secure hold for TRAX, AERO and SysBags with adapter plate (SysBag 15, 30, WP L)
Adapter kits for attaching cases from Givi/Kappa, Krauser and Shad are also available

Details

Material: Steel
Surface: powder coated
Color: black
Total Weight: appr. 4,9 kg / appr. 10.9 lb

Note

Adapter kits are required for aluminum cases from SW-MOTECH and other manufacturers and also for AERO ABS side cases and SysBags with adapter plates (SysBag 15, 30, WP L).

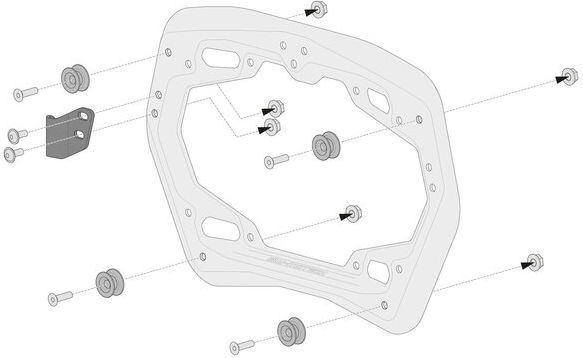

Adapter kit for PRO side carrier
Adapter kit for attaching a TRAX or NANUK side case to an SW-MOTECH PRO side carrier
Mounted on to the existing holes of the SW-MOTECH PRO side carrier
For left and right sides

Details

Color: silver
Total Weight: appr. 0,3 kg / appr. 0.7 lb

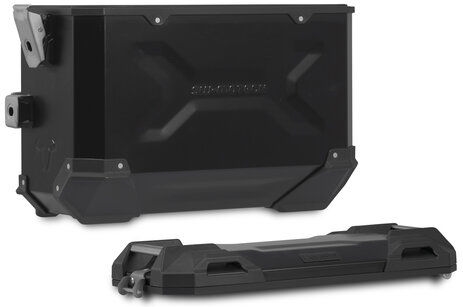

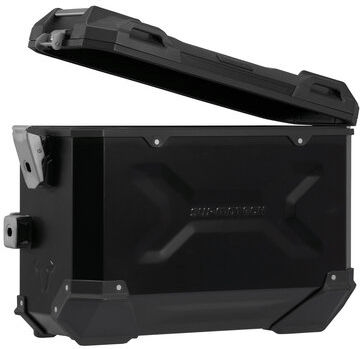

TRAX ADV L Aluminium case
Model for the left side of the motorcycle
Protection against oxidation and abrasion thanks to black powder coating, easy to clean surface
Sturdy and watertight side case made from aluminium
Large chamfer on sides for plenty of ground clearance for cornering, additional protection from glass fiber reinforced plastic corner caps
Robot-guided welding and self-piercing riveting prevent dampness from getting in
Even when loaded, completely removable lid with quick-release fastener
4 large tie-downs integrated into the lid design (e. g. for a tent or accessory bag)
High stability thanks to the embossed patterns, welded edges and pre-installed retaining rail
Hinges made from stainless steel, handles made from anodized aluminum
Lid limiters provide additional stability when using extra luggage on the lid
Exchangeable cover gasket
The membrane makes it easy to open the lid, even in case of extreme pressure and temperature fluctuations
Quick mounting on to all PRO and EVO luggage carriers (adapters sold separately)
Adapter kits also available for mounting on to girders from other manufacturers such as Givi and Hepco & Becker
A lock set with 6 identical locks is available as an option and is not included in delivery

Details

Material: Aluminum
Material strength: 0,15 cm / 0.06 in
Surface: powder coated
Color: black
Size: 49,0 x 28,0 x 37,0 cm / 19.3 x 11.0 x 14.6 in
Total Weight: appr. 5,4 kg / appr. 11.9 lb
Total Volume: 45,0 l

Note

Also available as a TRAX ADV aluminum case system with 2 side cases, bike-specific side carriers, adapters and lock set.

Required for mounting

Side carrier, adapter kit, TRAX lock set
TRAX ADV M Aluminium case
Model for the right side of the motorcycle
Protection against oxidation and abrasion thanks to black powder coating, easy to clean surface
Sturdy and watertight side case made from aluminium
Large chamfer on sides for plenty of ground clearance for cornering, additional protection from glass fiber reinforced plastic corner caps
Robot-guided welding and self-piercing riveting prevent dampness from getting in
Even when loaded, completely removable lid with quick-release fastener
4 large tie-downs integrated into the lid design (e. g. for a tent or accessory bag)
High stability thanks to the embossed patterns, welded edges and pre-installed retaining rail
Hinges made from stainless steel, handles made from anodized aluminum
Lid limiters provide additional stability when using extra luggage on the lid
Exchangeable cover gasket
The membrane makes it easy to open the lid, even in case of extreme pressure and temperature fluctuations
Quick mounting on to all PRO and EVO luggage carriers (adapters sold separately)
Adapter kits also available for mounting on to girders from other manufacturers such as Givi and Hepco & Becker
A lock set with 6 identical locks is available as an option and is not included in delivery

Details

Material: Aluminum
Surface: powder coated
Color: black
Size: 49,0 x 23,0 x 37,0 cm / 19.3 x 9.1 x 14.6 in
Total Weight: appr. 5,1 kg / appr. 11.2 lb
Total Volume: 37,0 l

Note

Also available as a TRAX ADV aluminum case system with 2 side cases, bike-specific side carriers, adapters and lock set.

Required for mounting

Side carrier, adapter kit, TRAX lock set
TRAX lock set with PRO anti-theft protection
9 matching locks
With anti-theft protection for PRO side carrier
Compatible with side cases and top cases from the TRAX ADV and TRAX ION series
One key for all locks

Details

Color: black
Total Weight: appr. 0,5 kg / appr. 1.0 lb
Multi-tool key chain attachment
Multitool as practical key chain
Quick-release fastener opener for EVO and PRO side carriers
Hex key (14 mm) - ideal for many motorcycle mirrors
Hex keys in four additional sizes (8, 10, 12, 13 mm)
Bottle opener
Key chain eyelet
With laser-etched SW-MOTECH logo

Details

Material: Stainless steel
Surface: brushed
Color: silver
Total Weight: appr. 0,0 kg / appr. 0.1 lb
Included in delivery
1 x TRAX ADV L Aluminium case, 45,00 l, left, black
1 x TRAX ADV M Aluminium case, 37,00 l, right, black
2 x PRO Side carrier
2 x Adapter kit for PRO side carrier
1 x TRAX lock set with PRO anti-theft protection
1 x Multi-tool key chain attachment
4 x Lid limiter
2 x Storage bag
Mounting instructions
Mounting material
Details
Color: black
Total Weight: appr. 20,4 kg / appr. 44.9 lb
Total Volume: 82,0 l
