「日本語翻訳」

商品番号 : 2417-ROADSTER-PURE

NineT PARIS DAKAR HA83のキットには、あなたのnineTを象徴するようなアクセサリーが付属しています。
あなたのバイクの快適性と乗り心地が大きく向上します。タンクは短くなり、ハンドルに近づき、フロントに荷重をかけることができるようになりました。ハンドルバーからの奇妙な距離感はなくなり、バイクのコントロール性が向上するのを感じることができます。キット内の全てのパーツは塗装済みで、クリアコートの下にグラフィックが施され、すぐに組み立てることができます。
キット名：NineT PARIS DAKAR HA83
コード:2401HA
タンクナイロンの燃料タンクは、元のバイクの燃料キャップと燃料ポンプを再利用し、リザーブライトもそのまま使え、何も手を加える必要がない、完全にリバーシブルなキットです。フューエルタンクの色は、アーバンGSのライトホワイトです。ステッカー付き。オリジナルのアクティブコールフィルター（キャニスター）は、あなたのオリジナルのバイクと同じままです。すべての取り付けブラケットがキットに含まれています。容量は22.5リットルで、平均消費電力を17.7km/リットルで計算すると、航続距離は400km・・・世界一周には十分すぎるほどの距離です。備考：テュフ認定
シート：シートは2つのパーツに分かれています。パッセンジャー用のリアシートは、バイクに付属のオリジナルキーを使って素早く取り外すことができます。シート高：850mm（アーバンGSのオリジナルシートと同じ）。
サイドパネル。ABS製、マットブラック仕上げ、グラフィックはクリアコート下。取り付け用ブラケット、ネジ、防振ウェルナットが付属します。
パッセンジャーグリップ付きリアラゲッジラック
Cod.2014
ラゲッジラックはスチールチューブ製で、マットブラックのエポキシ粉体塗装が施されています。リア部分を補完し、助手席のためのハンドルが付属しており、助手席の下のフレームに非常に簡単に固定することができます。軽量で実用的、ストラップ固定用のガイドを装備しています。バイクの美観を向上させます。
注：ラゲッジ・ラック用の革製ストラップ2本は付属していませんので、別途ご購入ください（色はブラックとブラウンの2色からお選びいただけます）。サイドパニア用のBMW純正フレームと互換性があります。9T全モデルに取り付け可能。最大積載量5kg。すべてのソフトラゲージに対応するラゲッジラック。アルミ製やプラスチック製のケースには対応していません。
ヘッドライトプロテクショングリル
コード.1606グレー
9Tのヘッドライトグリルを作るのは簡単ではありませんでした。私たちはクリーンでミニマルなグリルを求めていましたが、それが実現したのです。ブラックまたはナチュラルのスチール製で、バイクのオリジナルパーツを一切いじらずに数分で装着でき、自由に取り外すことができます。注意：公道での使用は許可されていません。写真のヘッドライトマウントリングは黒く再塗装されています。
フロントナンバープレートキット
Cod.2034
フロントナンバープレートキット ライトホワイト。塗装済みアルミプレート、GPSサポート付き。nineT、Urban gs、Scrambler、Pureの各モデルへの取り付けに必要なものがすべて付属しています。ステッカーとナンバーは付属していませんので、別売りとなります。
フロントフェンダー ライトホワイト
コード.2031LW+2028
nineT Scramblerと9T Pureは、9T Urban GSよりもフロントヘッドライトの位置が低くなっています。このキットでフロントのスタイルを変更し、非常にアグレッシブにすると同時に、ウインドシールドと高さのあるマッドガードを装備します。伝説のR80 GS PDの外観を彷彿とさせ、R nine Tシリーズに適合させ、改訂されました。アルミニウム製ヘッドライトサポート、ABS製フロントフェンダーとウインドシールドを含むコンプリートキットです。

---

「原文」

Article Number : 2417-ROADSTER-PURE

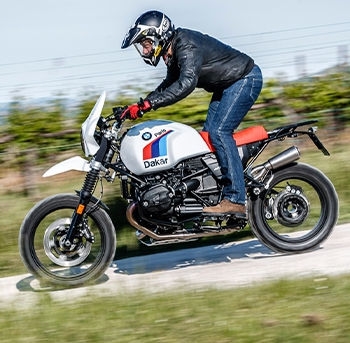

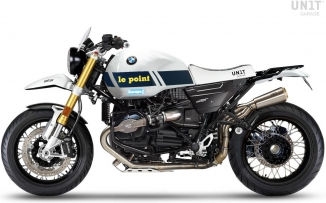

The Kit NineT PARIS DAKAR HA83 with accessoires that will make your nineT iconic.
The comfort and rideability of your bike will greatly improve. The tank is shorter to allow you to get closer to the handlebars and load the front better. You will no longer have the strange distant feeling from the handlebars, but feel increased control over the bike. All parts in the Kit are painted, complete with graphics under clear coat and ready to be assembled.
Kit NineT PARIS DAKAR HA83
Cod.2401HA
Tank: The fuel tank in Nylon re-uses the original fuel cap and fuel pump of your original bike, the reserve light will still work, and you will not have to tamper with anything, the kit is completely reversible. The fueltank comes in the Light white of the Urban GS. Stickers included. The original active coal filter (canister) remains the same of your original bike. All mounting brackets are supplied in the kit. The capacity is 22.5 litres, which if we calculate an average consumption of 17.7 km/litre will allow a range of 400 km ... more than enough to travel around the world! NB: TÜV approved
Seat: The seat is divided into two parts. The rear seat of the passenger can be removed quickly using the original key provided with the bike. This allows you to carry a considerable amount of luggage when you travel alone.Seat height: 850mm (the same as the original Urban GS seat)
Side panels: Made in ABS with a Matt Black finish and graphics under a clear coat. Comes complete with mounting brackets, screws and anti-vibration wellnuts.
Rear luggage rack with passenger grip
Cod.2014
Luggage rack made of steel tubing with matt black epoxy powder coating. Completes the rear part and is provided with handles for the passenger, it is very simply fixed to the frame underneath the passenger seat. Lightweight, practical and equipped with guides for fixing straps. Improves the aesthetics of the bike.
NB: the 2 leather straps for the luggage rack are not included and can be purchased separately (Available in black or brown). It is compatible with the original BMW frame for the side pannier. Mounts on all nineT models. ​Maximum load 5kg. Luggage rack compatible with all types of soft luggage. NOT compatible with aluminium or plastic cases.
Headlight protection Grill
Cod.1606Grey
It was not easy to build a headlight gril for the nineT. We wanted a clean and minimalistic gril ... and I would say that we did it! Available in black or natural steel, can be fitted in a couple of minutes without having to tamper with any of the original parts of the bike and can be removed at will. NB: not approved for road use; pictured headlight mounting ring has been repainted black; black ring not included.
Front number plate kit
Cod.2034
Front number plate kit Light White. Painted aluminum plate, complete with GPS support. It comes with everything needed for mounting on nineT, Urban gs, Scrambler and Pure models. Stickers and numbers not included, sold separately.
Front fender Light white
Cod.2031LW+2028
The nineT Scrambler and the nineT Pure have the front headlight positioned lower than the nineT Urban GS. With this kit you can restyle the front, making it very aggressive and at the same time having a windshield and a hight mudguard. Reminisent of the look of the legendary R80 GS PD adapted and revised for the R nine T series. Complete kit with raised headlight support in aluminium, front fender and windshield made in ABS. finished with transparent top coat and available in 4 colors: Red, Matt Black, Alpine White and Urban GS Light White. They mount without any modifications to the bike. It has good wind protection and comes complete with instructions, screws, and mounting brackets.
Engine protection crash bars nineT
Cod.1625
These crash bars integrate seamlessly with the frame of the R nineT , and offer very good protection when the bike is dropped. Made in treated steel with high resistance powder coat. Easy to install, it comes complete with distance bushings and screws. The majority of the maintenance work can be performed without disassembly of the bars.
Rear fender with license plate kit
Cod.1651LW+1682
ABS rear fender, complete with everything needed for assembly. It fits perfectly with the design of the bike. It can also be mounted with the original saddle, with or without passenger frame. Specially developed aluminum license plate holder included, with integrated LED light. (see photo). Completely modular, the license plate support or the indicator supports are included but can be disassembled if you want to position the arrows or the plate in another way, for example with the low license plate holder Cod. 1610. The electrical wiring is plug and play, all electrical connections are made with connectors that do not require soldering or modifications of the original wiring. Stainless steel screw kit included. Available in various colors and unpainted.
Handlebar bumper black
Cod.1619Black
Handlebar bumper in black leather. It is very easy to install on any handlebar crossbar and protects the face in case of a crach. Length 26cm, diameter 6cm.
Handlebar ends
Cod.2x2024
Pair of CNC machined handlebar ends with glossy black anodized finish with the Unit garage logo. The two M12 fastening screws are included.
Handlebar nine T Ergo
Cod.1613Ergo+ADP
For the nineT we wanted "Old School" handlebars with a constant diameter (22mm). These handlebars give your nineT an agressive look but with a more comfortable riding possition. Made of steel with powder coated matte black finish, it comes pre-drilled with everything you need to mount it on the original risers and fit the original controls. It does not require any modifications to cables or brake lines. NB: The 1613 Ergo handlebar is as high as the original OEM but with a more comfortable fold (see measures in the immages) Compatible with heated grips.
Luggage rack base plate
Cod.2406
Nine-Paris Dakar aluminum base rack with epoxy powder matt black finish. This plate, created for the nineT-Paris Dakar kit, is fixed to the rear frame of the bike, to widen the load platform when removing the passenger seat. It can be mounted with the rack carrier cod 2014: it comes complete with fixing screws and anti-slip rubber. Perfect to accommodate our classic leather bag cod 122509_01 or the Duffle bag U013 and U015.
High pipe
Cod.1611High+U021SX
For the nine T we wanted a special pipe , but it is perfectly homologated for road use! Steel connector with titanium silencer entirely handmade,in perfect moto gp style. It weighs about 2,8 kg lighter than the original and has a removable DB-Killer. It mounts easily in just a few minutes onto the passenger frame on the original anti-vibration grommet. If you want to remove the passenger frame and make the rear of the bike really aggressive, you'll have to buy our support code "1611 supp high". The sound will make you crazy,and the engine resposiveness ... as well! NB: Comes with homologation report. Protection in carbon fiber not included.
Compatible with all nineT models, it comes complete with everything needed for assembly. Video instructions included.
The kit nineT Paris Dakar HA83 will take you far.... to where your dreams will carry you!
To offer you the best we constantly improve our products details. Images may refer to a previous version.
